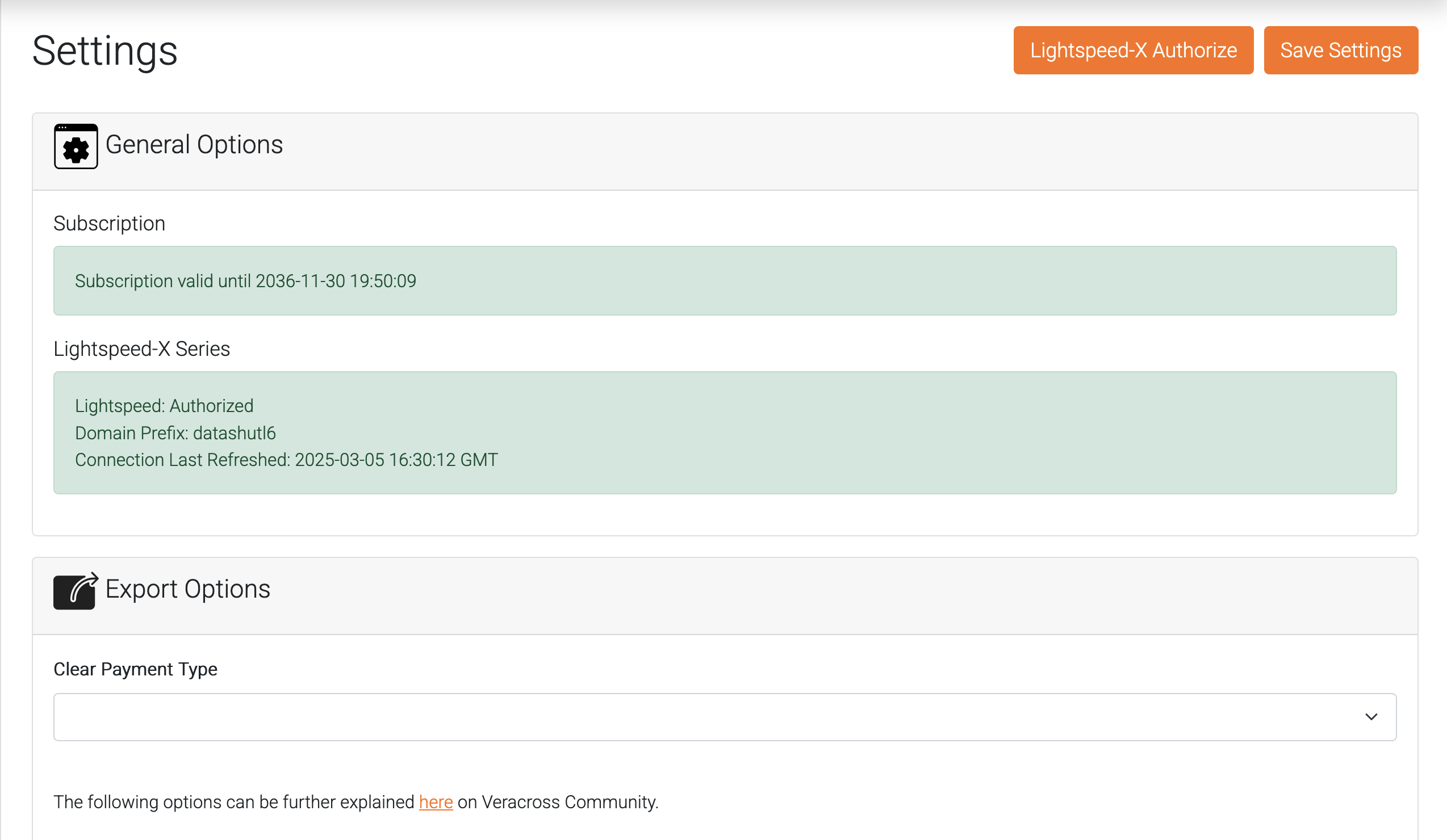

Settings

settings1

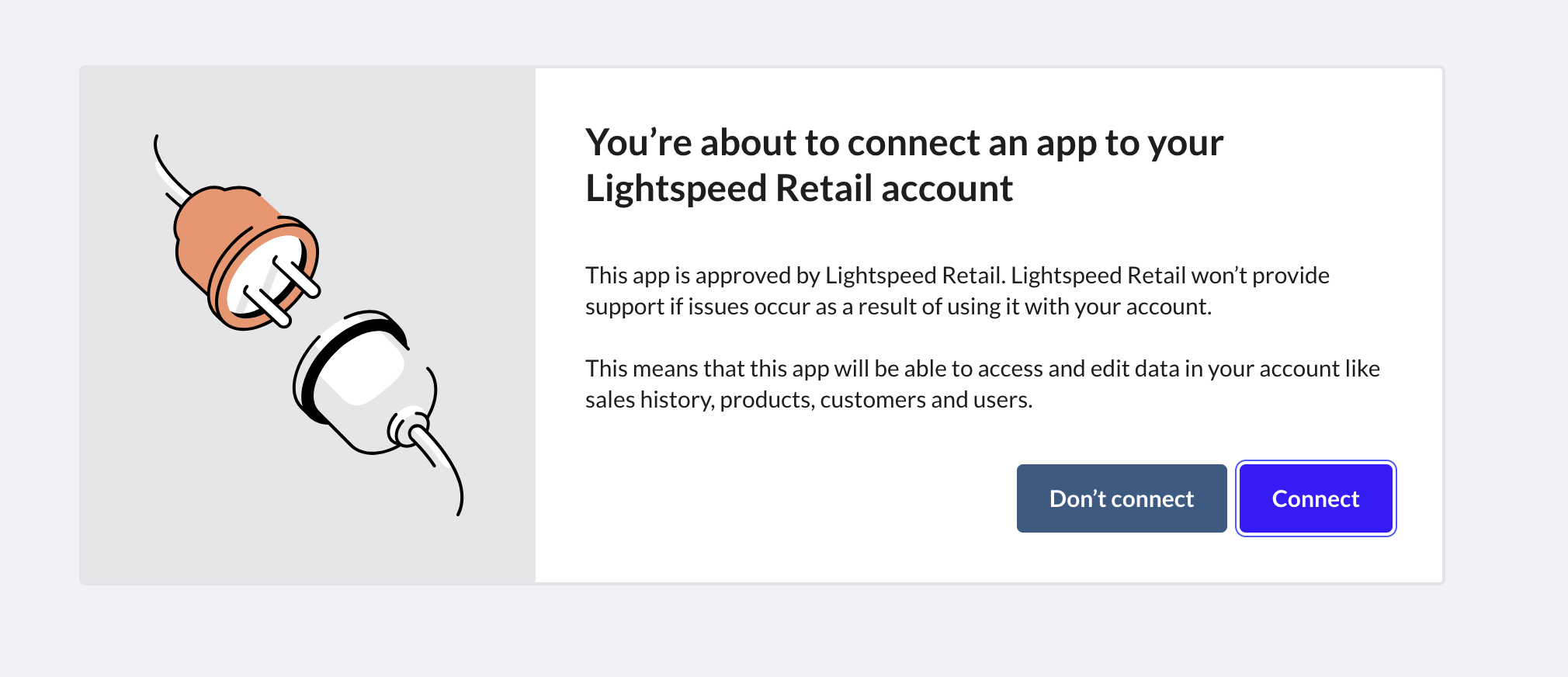

Lightspeed-X Authorize

Use this button to authorize the datashutl application in your Lightspeed-R series account. To authorize with Lightspeed:

  1. Click the "Lightspeed-X Authorize" button. You will be redirected to Lightspeed-X login.
  2. Enter your Lightspeed-X domain
  3. Login to your Lightspeed Admin account.
  4. Click the "Connect" button to allow access. You will be redirected back to datashutl once complete. The datashutl app is a Lightspeed Verified application.

lightspeed_auth

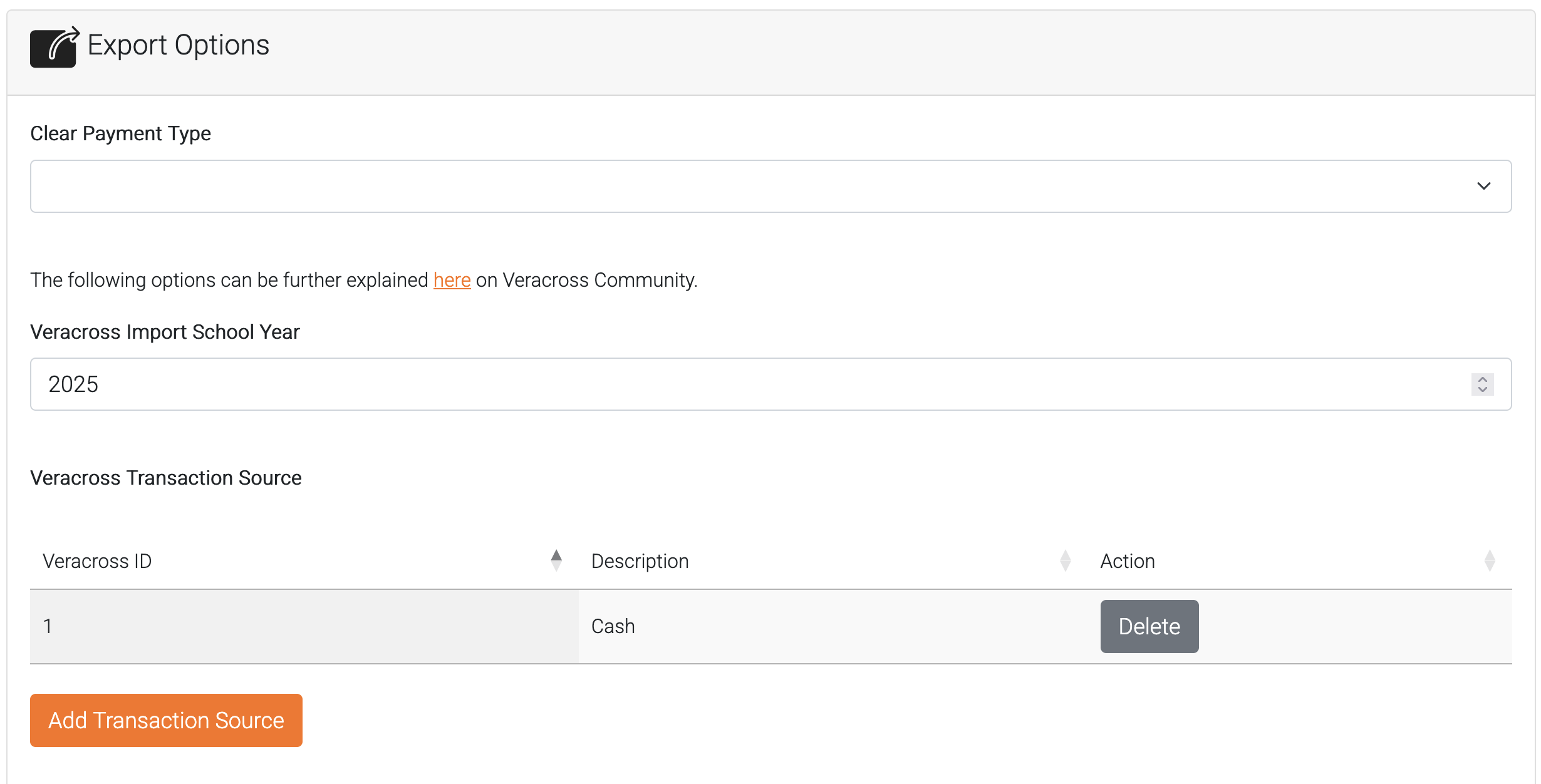

Export Options

export_options

In this section are a few required fields that help properly format the export file for Veracross.

More information about these fields can be located in the Veracross Community.

As of this writing, these fields are not accessible through the Veracross API. To work around this datashutl allows you to store a mapping of the Veracross ID numbers that are required with more user-friendly name. These values will then be made available in Exports.

Import School Year

This is the current student billing school year in Veracross.

Transaction Source

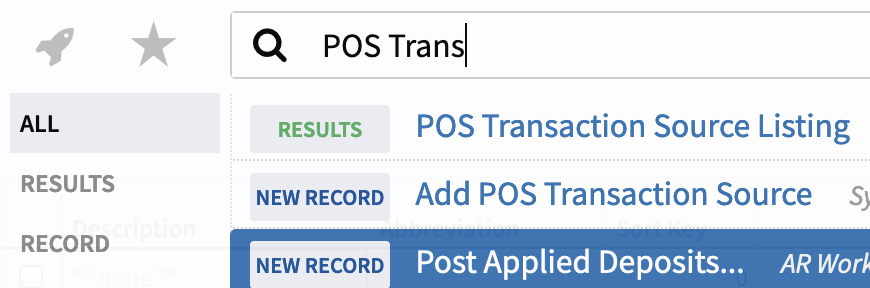

This field is custom for each school. To locate your Transaction Sources, login to Axiom Accounting, and search "POS Transaction Source Listing" query.

trasnaction_source_listing

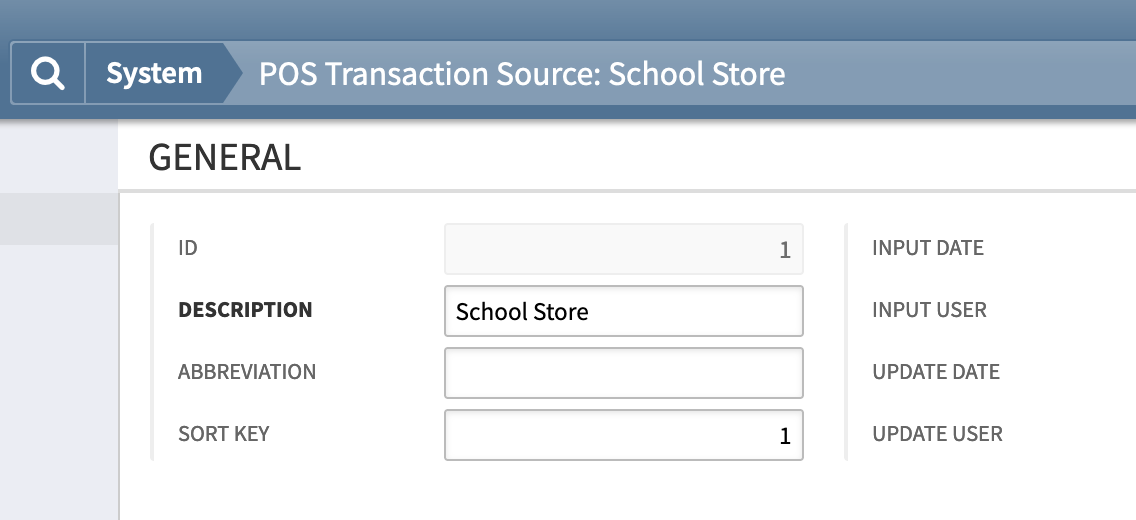

To locate the Veracross ID, select the POS Transaction Source in the query and locate the ID field.

transaction_source_listing_results

Save the values of the sources you need in the Transaction Source table. The name doesn't need to match what is in Veracross, only the ID number.

  1. Click "Add Transaction Source".
  2. Enter the ID number located in Veracross.
  3. Enter a description that explains what this ID is used for.

Transaction Type

Generally these values will be the same for all schools. Veracross recommends:

transaction_type: 1 = Purchase; 2 = Credit; 3 = Payment

Catalog Item

This table is a mapping of your Veracross Catalog IDs located in Axiom Accounting.

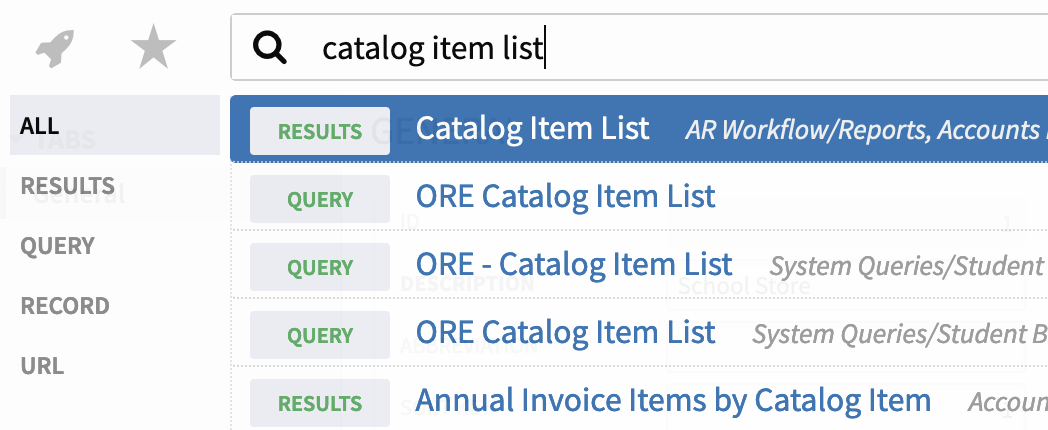

To locate the catalog ids, search for "Catalog Item List" in Axiom Accounting.

axiom_catalogs_ids

Add all the catalog items you will need to charge sales to in student billing. The name doesn't need to match what is in Veracross, only the ID number.
